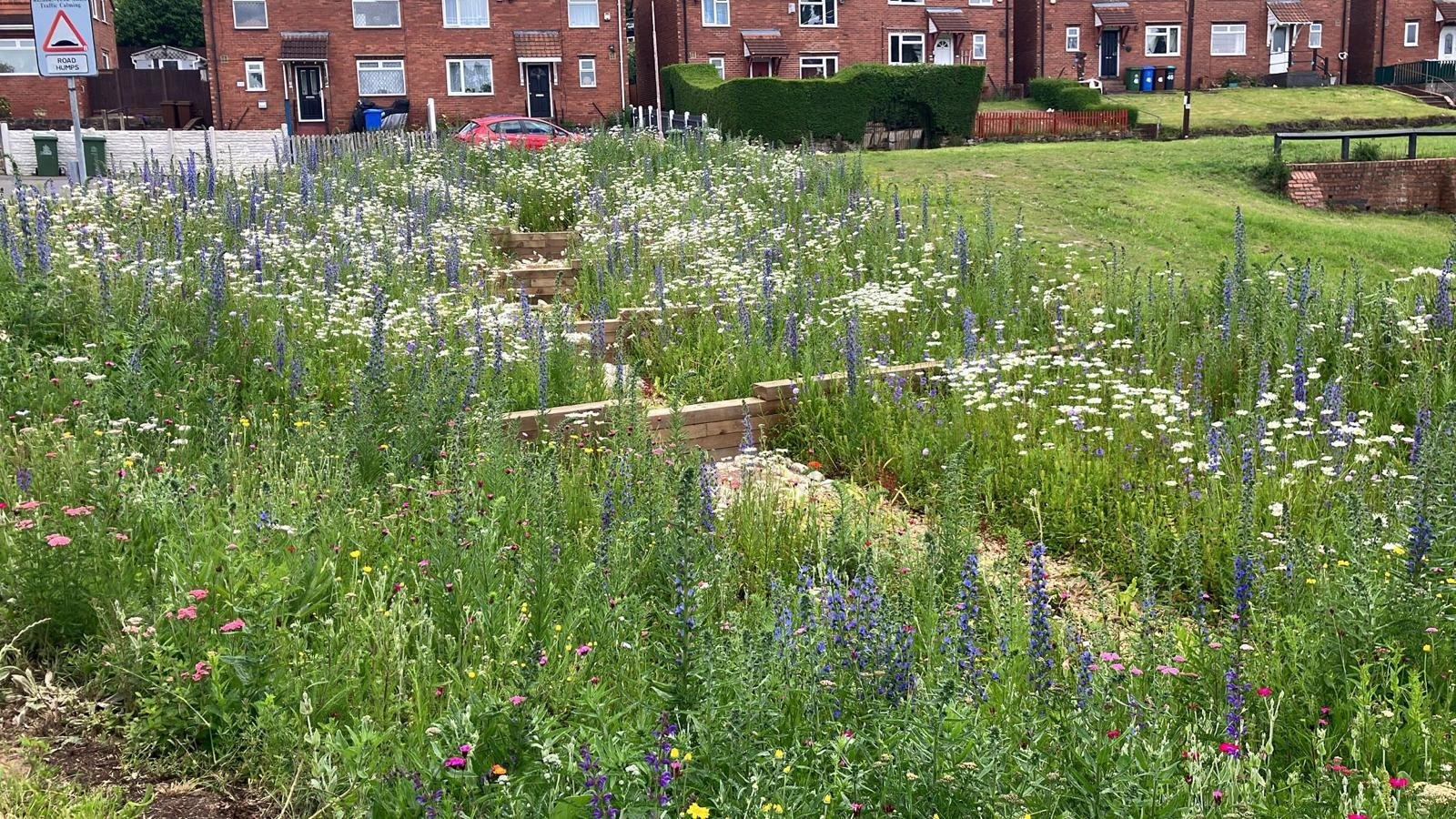

The Mansfield Sustainable Flood Resilience Scheme

Severn Trent Water invested £76 million in Mansfield on a range of nature-based solutions to protect communities from flooding. Working alongside Mansfield District Council and Nottinghamshire County Council, this is the largest project of its kind ever to be attempted in the country.

The finished scheme will be able to store over 30 million litres of surface water, that’s about 14 Olympic-sized swimming pools. In real terms this means reduced flood risk for 90,000 people and the creation of 390 jobs locally, too.

Severn Trent Water believe this will become a blueprint for how we manage flooding in the future. And at the same time, it makes Mansfield an even fresher, greener place to live for the residents and communities.

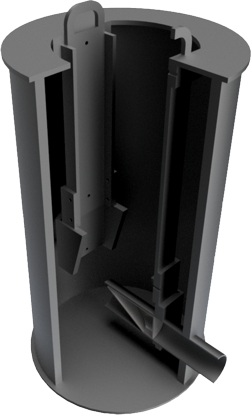

SUDS02008 flow control chamber

Combined Flow Control
& Non-Return Valve Chamber - WASP07202

SEL were contacted by Severn Trent Water (STW) who wanted to discuss orifice flow control chambers to regulate flows from their rain gardens, which were retrofitted as part of the Mansfield Sustainable Flood Resilience Scheme to improve flood resilience through use of sustainable drainage techniques.

The rain gardens would connect to a combined sewer network so a non-return valve would also be required to prevent backflow, STW expressed a preference to use a Wastop NRV.

Normally this would mean two separate drainage chambers would be required but due to serious space limitations and a need to maximise attenuation within the rain gardens, STW asked if it was possible to combine them both into a single chamber. STW also wanted the orifice flow control and Wastop non-return valve to be removable for maintenance.

Please contact SEL if you would like further information regarding this chamber, product code WASP07202

Tel: 01254 589987          Email: sales@selenvironmental.com

Fit for Purpose

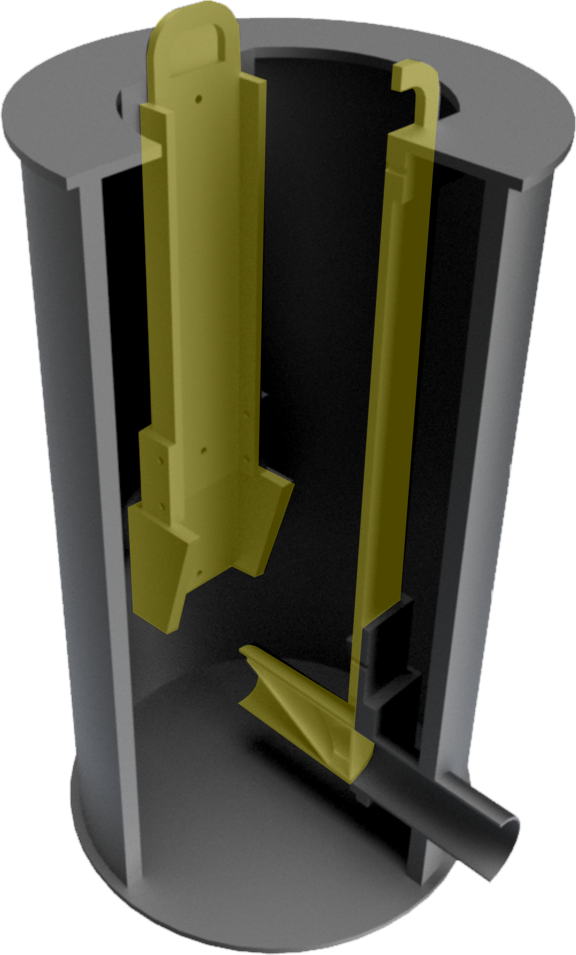

SEL developed a prototype drainage chamber that combined a removable orifice flow control and a removable wastop non-return valve. The yellow highlights in the image show the removable elements.

The prototype drainage chamber was put through a rigorous testing process at Sheffield University to ensure it was fit for purpose. 18 orifice flow control profiles were tested and the Wastop performance was checked to ensure an optimal arrangement causing minimal effect on the flow control performance. The removable plates were also tested to see how effective their seals were.

The final design, successfully installed in 100+ locations, provided a compact chamber, easily handled on site with:

  • Integral shutter for a concrete surround

  • Small footprint

  • Sealing removable plates

  • Predictable flow rate performance

  • Removable and maintainable non-return valve

  • Futureproof, as orifice flow control and Wastop valve can be easily replaced or updated

Please contact SEL if you would like further information regarding this chamber, product code WASP07202

Tel: 01254 589987          Email: sales@selenvironmental.com

CAD Details

surface water management

Key Benefits

Designed for SuDS

  • Developed by experienced SuDS designers with practicality in mind

  • Tested in situ for over a decade

  • Satisfies National Standards as well as the SuDS Manual 2015

  • Simple installation

  • Minimal maintenance over the long term

  • Standard stock items, universal formats for flexible specification or bespoke designs available

Consistent Performance

  • Low-cost flow control devices for use throughout management trains

  • Performance easily verified by local authorities

  • Straightforward specification using established criteria

  • Passive operation with consistent
    performance

  • Made to order using recyclable materials

Easy to Install

  • Easy access for inspection, measurement or sampling

  • Integral lifting points as standard

  • Depths to suit project-specific requirements

  • Supplied with integral spigot connections

  • Made from High-density Polyethylene (HDPE)

  • No concrete surround required
